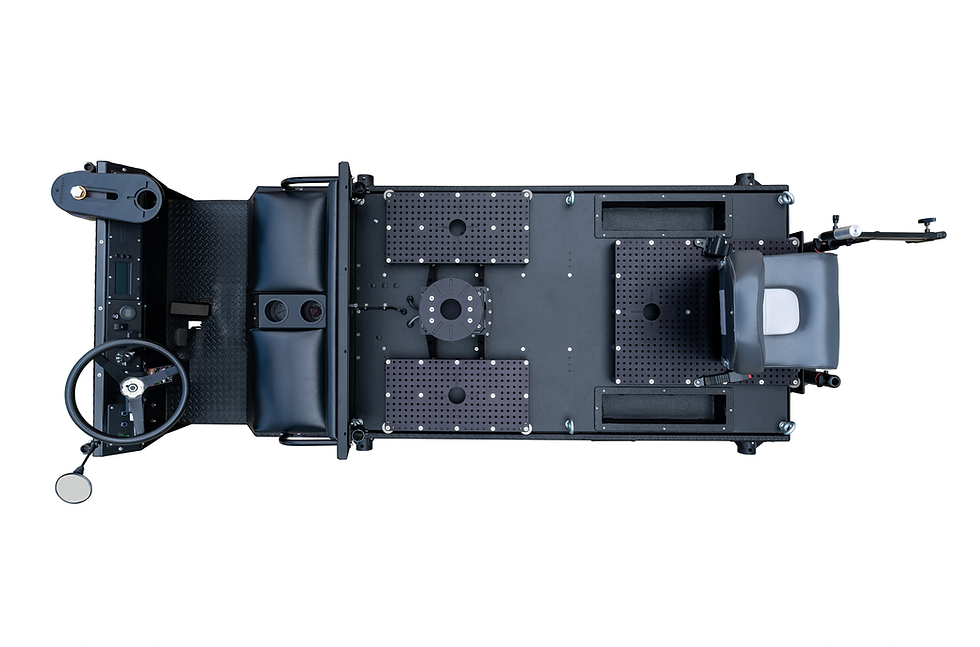

The Quickshot Camera Car by Kornercrane has a 100% electric system, and pairs perfectly with our jibs and cranes for dynamic camera movement.

Vehicle Features/Specs:
- 100 % electric system
- Curb Weight: 3,000 lbs (1,360 kg)
- Top Speed: 14 mph (24 km/h)
- Max Payload Capacity: 2,700 lbs (1,225 kg)
- Removable Outriggers
- SpeedRail Reinforced Attach Points
- SteadiCam Op Footstep & Safety Points
- Electronic Lift Column
- Electronic Platform Slider
- Onboard AC Power 4.7Kw
- Onboard smart battery charger
- Vehicle Length: 120 inches (305 cm)
- Wheel Base: 60 inches (153 cm)
- w/ Outriggers: 72 inches (183 cm)
- Vehicle Height w/ Column: 63 inches (160 cm)
- w/ Column Extended: 77 inches (196 cm)
- Ground Clearance @ Differential: 4.75 inches (12.1 cm)
- Speed (High Mode): 14 mph (21 kph)
- Speed (Low Mode): 5 mph (8 kph)
- Speed values remain the same w/ or w/o payload
- Outside Turn Radius: 21.25 ft (6.47 m)
- Steering: rack & pinion
- Suspension (Front): independent transverse leaf spring shocks
- Suspension (Rear): leaf springs & shock absorbers
- Service Brake (Front): hydraulic disc
- Service Brake (Rear): hydraulic drum
- Parking Brake: driver seat pressure switch automatic brake
- Tires: 5.70 x 8 (load range c)
- Outriggers: removable via telescope shaft w/ lock pin, drill driven x4
- Incline Angle: 25% or 14 degrees max
- Tilt Angle: 25% or 14 degrees max
- Ignition: key switch
- Exterior Coating: black line-x durawear

Vehicle Power:
- Power Source: 48V DC
- Battery: 8 batteries in series (6v @ 250ah / agm)
- Horsepower: 17.2 hp (12.8kw) peak
- Speed Controller: 450 amp AC
- Drive Train: motor shaft direct drive
- Transaxle: differential w/ helical gears
- Rear Axle Ratio: 17:01
- Gear Selection: forward-neutral-reverse switch
- Charger: onboard 48V smart charger (120 AC)
