Mo-Sys L40 Remote Head

Mo-Sys L40 Remote Head

The L-40 is a light weight 2-axis head for high-end digital cinematography is ideal for medium sized camera packages, for example ARRI Alexa with a large zoom lens, such as Optimo 12:1 or Panavision 12:1. At the core of the L-40 is a highly robust and precise motor drive with zero backlash, providing lag-free operation.



The L-40 sets a new standard with the digital back-pan gyro option, making it a preferred choice for telescopic and standard crane work. It allows the operator to concentrate on the framing while the head takes care of the compensation of the crane movement.

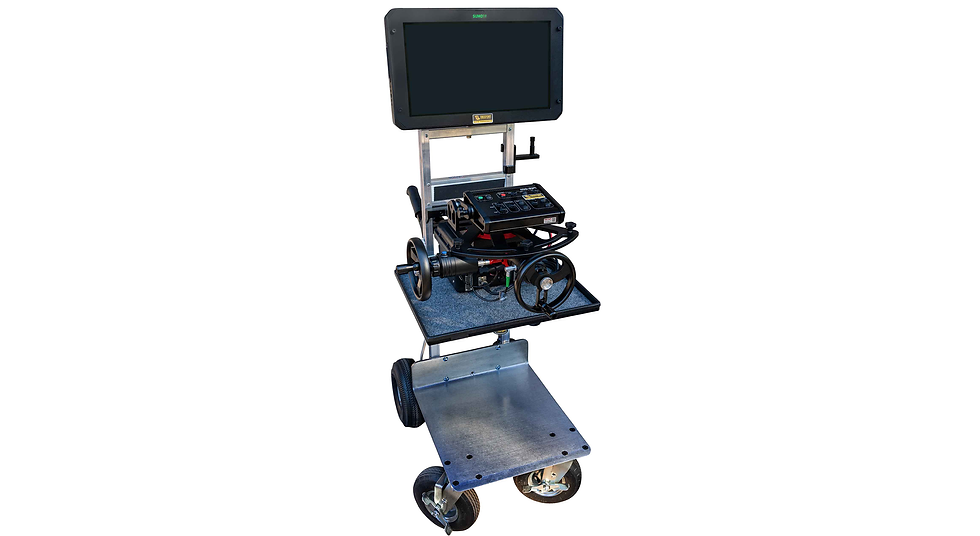

Rental price includes the L-40 along with a monitor and cart.



Specs:

Weight: 40 lbs (18 kg)

Payload: 88 lbs (40 kg)

Pan/Tilt speed: 180°/sec

Pan/Tilt range: ±720

Max system bus length (operating distance): 328’ (100 m)

Max operating distance with optional radio: 984’ (300 m)

Max operating distance with optical fiber bridge: 12.4 miles (20 km)

Pan/Tilt control options: Hand-wheels, pan-bar, joystick, micro joystick

VR encoder resolution: > 2 Million counts per revolution

Power: 15-32V (24V nom) 3A (nom) 20Apk

Mains: with PSU 110V-200V
