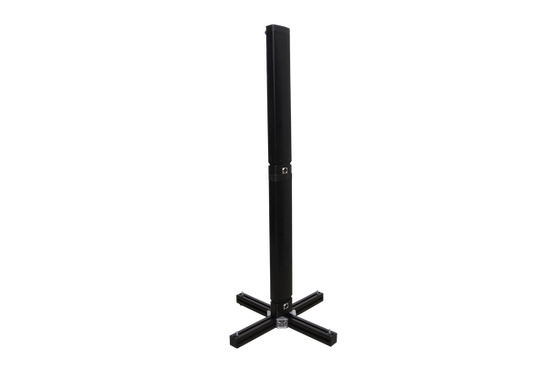

Polecam Autopod Plus Dual Leg Kit
The Polecam Autopod Plus Dual Leg Kit is a remotely operated programmable telescopic elevation unit for use with PTZ’s, teleprompters, gyro remotes, cameras, speakers and more.
This kit pairs perfectly with our Sony FR7 and Sony AM7 PTZ camera kits.
The Autopod Plus kit can be set up for an adjustable lens height range of 3'-1" to 5'-3" or 5'-1" to 9'-6". The truss mount included in the kit allows for one or two elevation legs to be hung from the ceiling. The horizontal camera mount included in the kit allows the system to move horizontally and allows a camera to be mounted over or underslung.
The unit can be used as a standalone system on a music stage, in a studio, in an orchestral pit, behind a goal, within a conference venue, or a remote location such as a golf course or a race track corner; providing an unobtrusive camera position.
Each AutoPod elevation unit is supplied with a universal camera mounting plate providing the ideal platform for your chosen object to be mounted to. The system also includes a set of “quick release in-line mounting and locking plates” which enables speedy power and data connections via XLR’s, rapid deployment and also enables the individual units to be stacked upon each other 2 units high providing greater height to be achieved whilst maintaining a low profile.
Additionally, the supplied set of 2x “upstands” can be used to increase elevation height, these are 9.8" long and can be stacked accordingly as required.
Specs:
- Adjustable lens height (Single riser/leg): 3'-1" to 5'-3"
- Adjustable lens height (Double riser/leg): 5'-1" to 9'-6"
- Max payload capacity (Single riser/leg): 77 lbs
- Max payload capacity (Double riser/leg): 55 lbs
- Max payload capacity for use w/ truss mount (Single riser/leg): 33 lbs
- Max payload capacity for use w/ truss mount (Double riser/leg): 11 lbs
Kit includes:
- (2) Legs / Risers
- (1) Lightweight base
- (1) Truss mount
- (1) Horizontal camera mount
- (1) Quick-release camera plate
- (1) 12V power supply
- (1) TX box
- (1) 24V power supply
- (2) 3 meter IEC cables with continental plug
- (1) RX box
- (1) 3 meter 6 pin XLR cable
- (1) Hex key set
- (2) 7.9" Riser rods
- (1) 100mm bowl and adapter
- Cable management clips
- Travel case
- Foot pedals
